Cb Bevel High Quality Chinese Rule Blade For Die Making

Name: Cb Bevel High Quality Chinese Rule Blade For Die Making
SKU: d4c7f860c0bc-1
Availability: InStock

¥27.00

CFDB-Centre Face Double Bevel

Cutting card or thick, materials with reduced cutting force, e.g. leather,cork, rubber, jigsaw puzzles, comugated board, plastics, plywood, etc.

CF-Centre Face(Double Beve)

Most commonly used cutting edge for all standard cardboard.

Compare

SKU: d4c7f860c0bc-1 Category: Uncategorized

Description

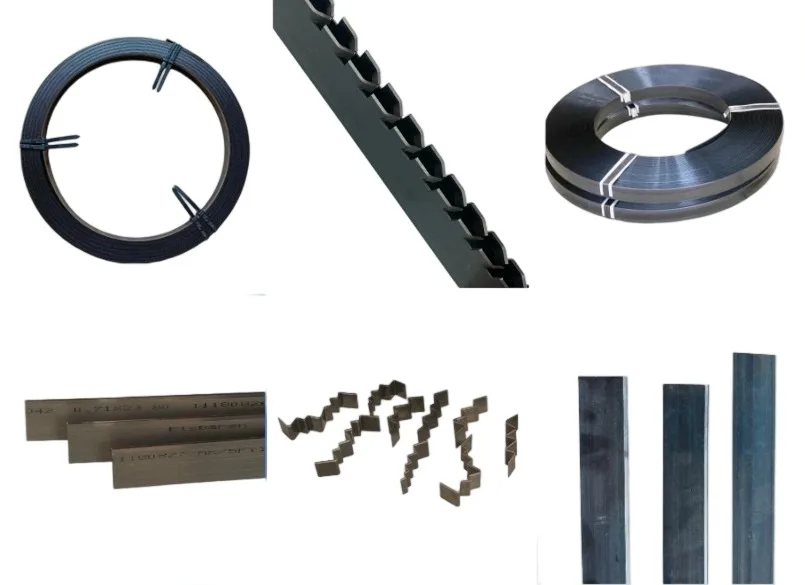

With excellent bending properties based on soft body with along service life due to hardened cutting edge, used forcardboard corrugated, label, etc.

We produce different bevel types for different cutting applications.

These products are widely used in cutting cardboard, comugat-ed board, card, plywood, cork, mubber and gaskets, plastic materals, etc.We supply shaved edge or Polished cutting edge according to differentcutting materials and different applying situations.

Hardness	Body	~340HV(34HRC)
	Edge	~640HV(57HRC)

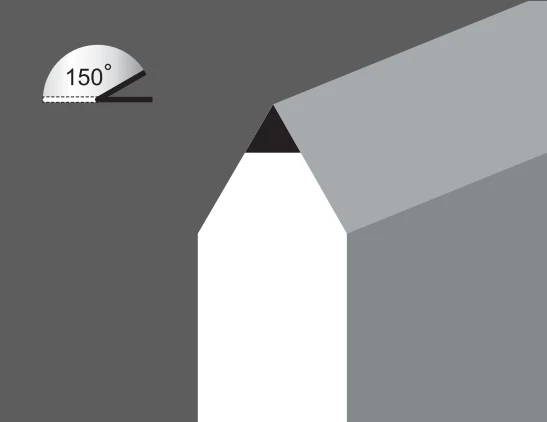

Best Bending Angle		α=150°
		R~0.3mm
Thickness		0.53/0.71/1.05/1.42
Height		22-60mm
Cutting Edge		Shaved

Flat Bed Cutting Rules Medium Hard Cutting Rule

CFDB-Centre Face Double Bevel

Cutting card or thick, materials with reduced cutting force, e.g. leather,cork, rubber, jigsaw puzzles, comugated board, plastics, plywood, etc.

CF-Centre Face(Double Beve)

Most commonly used cutting edge for all standard cardboard.

Flat Bed Cutting Rules Medium Hard Cutting Rule
